Published: Aug 17, 2026 by Ingrid Navarro

ScenarioCharacterization: A Modular Toolkit for Characterizing Safety across Trajectory Datasets

Ingrid Navarro†, Yutong Duan, Jonathan Francis‡ and Jean Oh‡

†Developed in part during an internship at Stack AV

‡Equal advising

Abstract

We introduce ScenarioCharacterization, an open-source framework for automated, dataset-agnostic profiling of driving scenarios in trajectory datasets. Our framework is packaged as a modular, configuration-driven pipeline of three layers: a dataset adapter that maps custom datasets onto an open Scenario representation, a characterizer that performs feature extraction, behavior probing, and criticality scoring at scenario and agent levels, and an analysis layer for scenario visualization and feature, score, and probe analyses. Because the layers communicate only through Pydantic-validated schemas composed via configurations, a new dataset can easily plug in without rewriting the characterization and analysis stack.

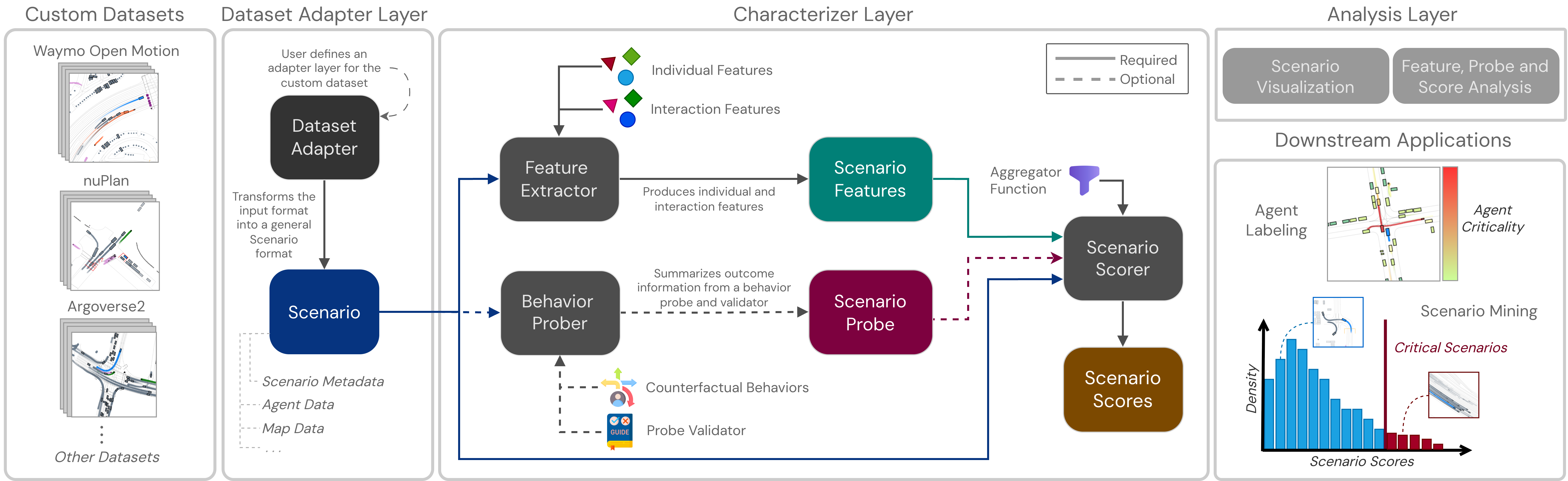

Overview of ScenarioCharacterization. Colored blocks denote the schemas that carry data between layers. Solid arrows mark required paths, dashed arrows optional ones.

Motivation

Finding which scenarios in a driving dataset are interesting or safety-relevant is an important problem in autonomous driving research. It underpins efforts in robustness evaluation, dataset splitting, curriculum design and agent relevance labeling.

Much of the machinery used for these tasks, however, is tailored to a specific setting and dataset. Prior work, including our own SafeShift, proposes characterization logic that is tightly coupled to a single dataset’s file format, agent taxonomy, sampling rate and map schema. Moving to a new dataset means rewriting the feature extractors, the scorers and the analysis code alongside the loader. It also makes cross-dataset comparison difficult.

Our idea

We propose ScenarioCharacterization, a configuration-driven library that separates what is characterized from where the data came from. The library makes three contributions.

1. A scenario profiling pipeline that consolidates characterization components from prior work into a single reusable library.
2. A schema-based model that maps heterogeneous datasets onto a unified representation, so downstream stages operate independently of the source benchmark.
3. Worked examples on WOMD, Argoverse2 and nuPlan, plus two downstream uses, scenario mining and agent labeling.

Framework

The pipeline is split into three layers. They communicate only through Pydantic-validated schemas, composed via Hydra configurations. Each component is extended by subclassing its base class and implementing one entry point.

Dataset Adapter → Scenario

The adapter is the only dataset-specific code. It maps a raw sample onto a common Scenario object. That object is built from five parts.

• ScenarioMetadata holds identifiers, timing and thresholds.
• AgentData holds the trajectories, agent types and relevance flags.
• TracksToPredict marks the subset of agents targeted for prediction or navigation.
• StaticMapData describes lanes, geometry, regulatory elements and conflict points.
• DynamicMapData covers traffic lights and other time-varying map features.

We provide adapters for WOMD, Argoverse2, nuPlan and nuScenes. A new dataset only requires implementing transform.

Feature Extractor → ScenarioFeatures

The extractor computes low-level features. They are grouped into one container per axis.

• individual_features covers single-agent state and behavior. It holds speed, acceleration and jerk, speed-limit difference, waiting period at a conflict point, trajectory type and Kalman difficulty.
• interaction_features covers agent-pair conflicts. It holds time-to-collision (TTC), time headway (THW), deceleration rate to avoid a crash (DRAC), minimum time to conflict point (mTTCP) and collisions.

Each axis also carries validity masks and the agent types the features were computed over. Downstream stages can then filter by agent class without going back to the Scenario. New axes slot in alongside these two.

Scorer → ScenarioScores

The scorer collapses features into scores. ScenarioScores holds one Score per aggregator, namely individual_scores, interaction_scores and safeshift_scores. Each Score carries per-agent scores, their validity mask and a single aggregated scene_score.

The three aggregators are interchangeable. The individual one importance-weights clipped individual features per agent. The interaction one does the same per agent pair. The SafeShift one combines the two hierarchically, weighted by proximity. It also extends the original formulation with a vulnerable-road-user multiplier.

Behavior Prober → ScenarioProbe

The prober searches for latent criticality that the recorded behavior hides. A constant-velocity probe replaces an agent’s future with a constant-velocity extrapolation, emulating a non-reactive, distracted driver. A score-based validator then re-scores the perturbed scenario on the interaction axis. It retains the probe only when the per-pair delta exceeds a threshold. The sweep covers the ego against all others and each non-ego agent against the ego, keeping the single most impactful probe.

The resulting schema records probed_agent_id and probed_agent_trajectory, whether the probed agent is_ego_agent, the probe_type, and the criticality_time_idx at which the perturbed scenario is most critical. It also stores the scene score before and after probing, along with the affected agent ids and their pairwise scores on both sides of the perturbation. If no candidate is valid, the prober returns an empty probe.

Analysis

The analysis layer consumes the schemas above. It renders scenarios either as static images or as animations, with panes for all agents, relevant agents, agents shaded by criticality and counterfactual probes. It also turns the per-scenario outputs into distributional views, both within and across datasets.

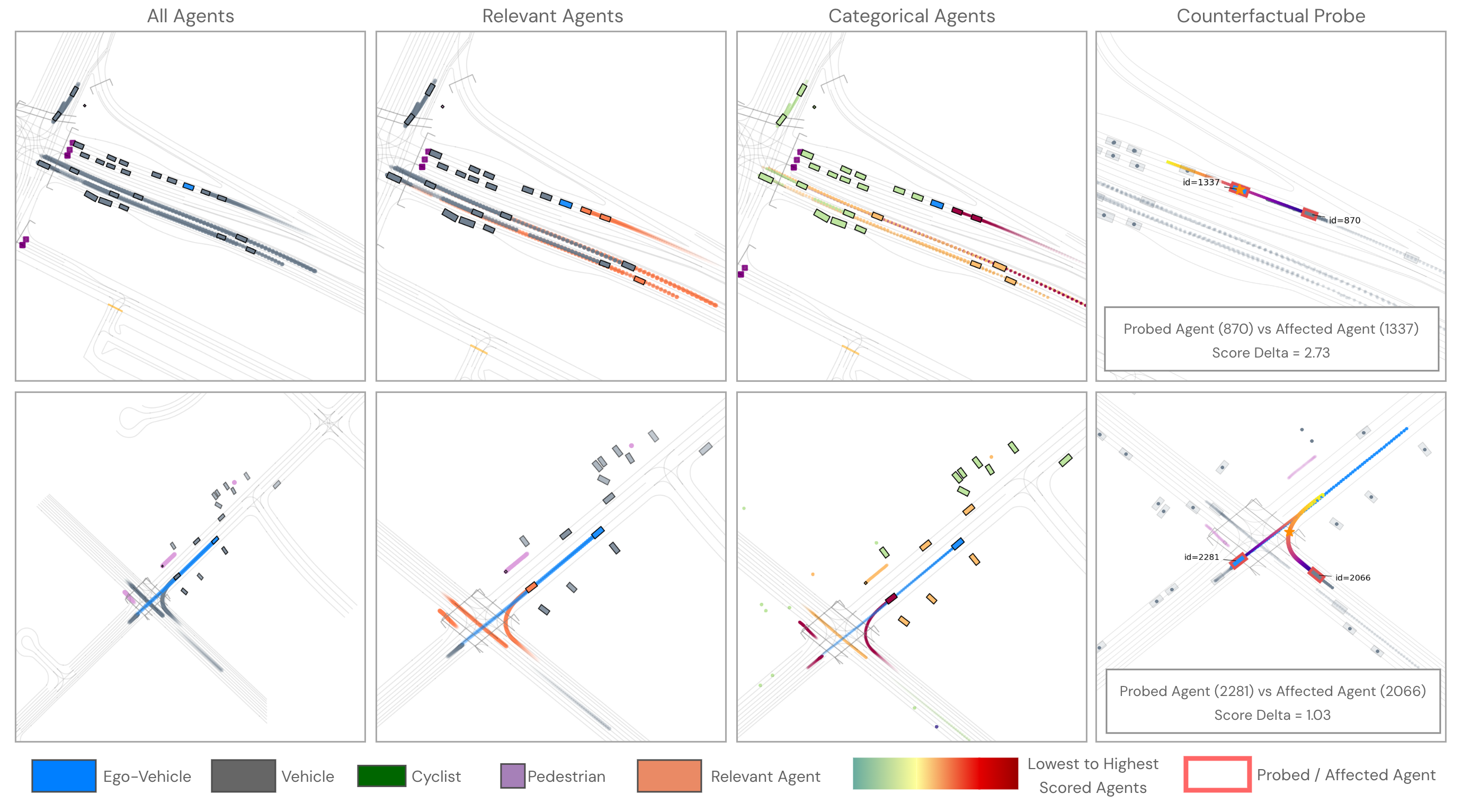

Supported visualizations, shown on two WOMD scenarios. On the top, the ego waits at a traffic light while relevant agents approach and stop behind it. On the bottom, the ego approaches an intersection as a cyclist initiates a left turn across its path.

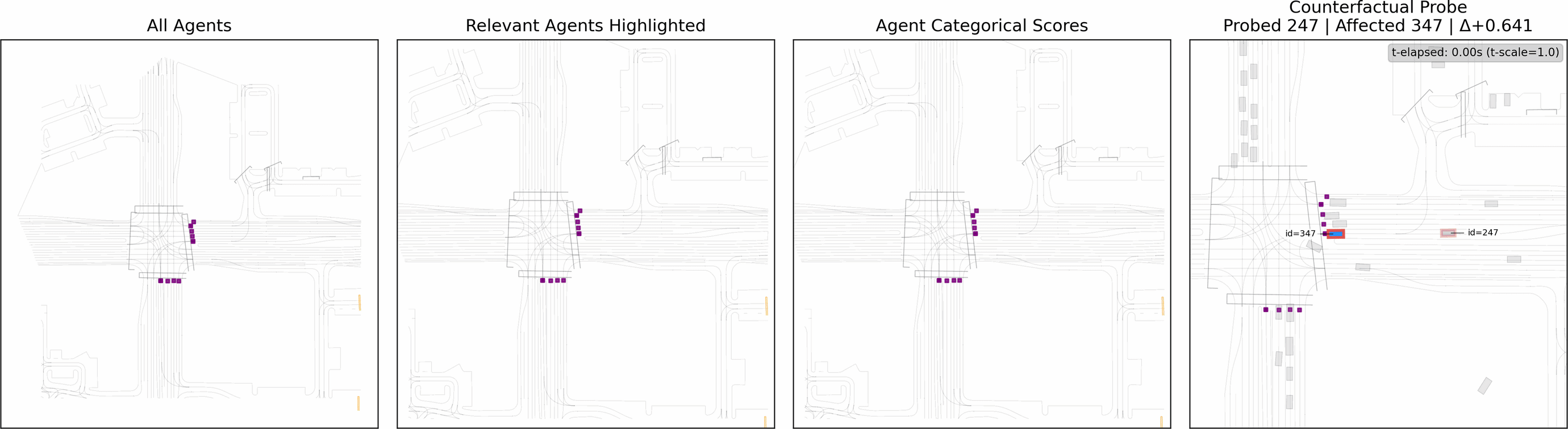

The same four panes, animated on a single WOMD scenario. From left to right: all agents, relevant agents highlighted, agents shaded by criticality, and the counterfactual probe, which perturbs agent 247 and raises the pair score against the affected agent 347.

For the distributional views below we ran the pipeline over 5,000 scenarios from each of WOMD, Argoverse2 and nuPlan. All were standardized to 10 Hz, with agent types mapped onto a common taxonomy.

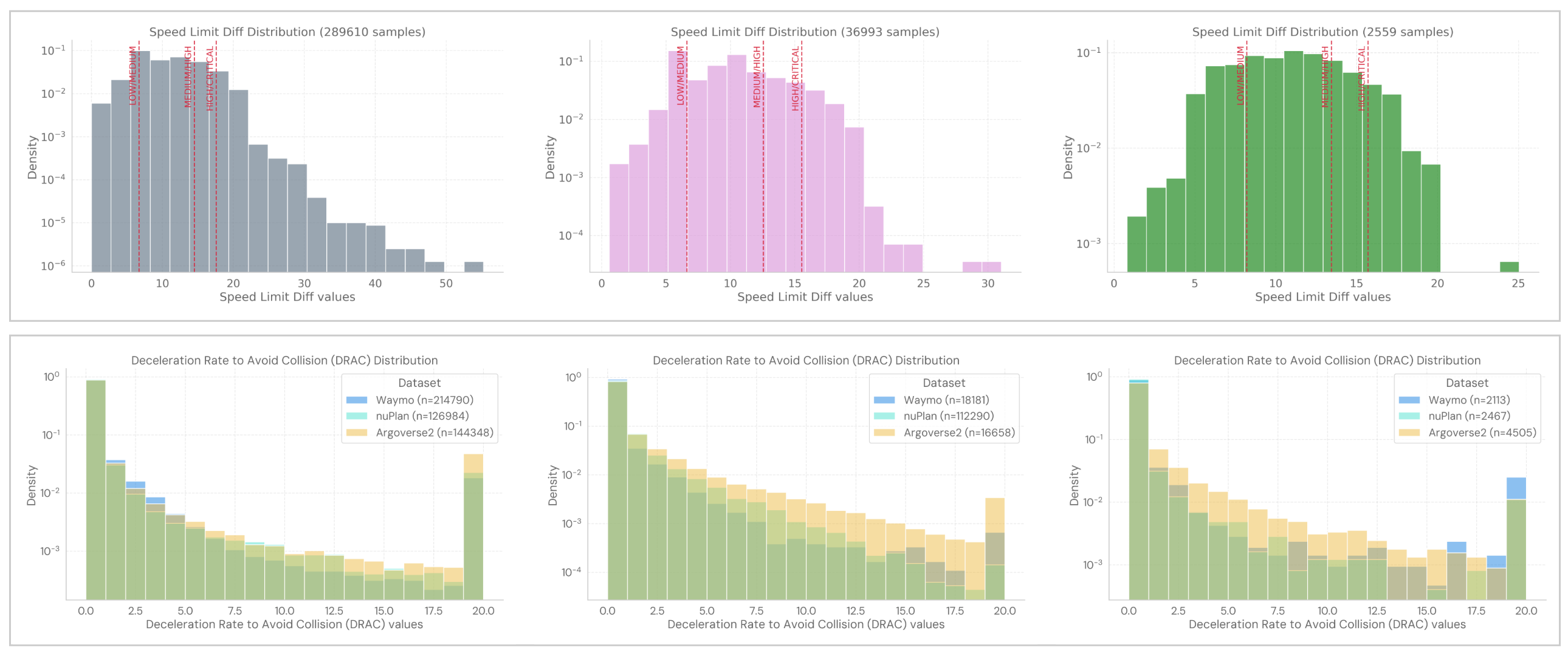

Feature analysis. On the top, speed-limit difference distributions per agent type on WOMD, with the 25th, 75th and 90th percentiles marked. On the bottom, DRAC distributions across WOMD, nuPlan and Argoverse2.

Feature-level views are what percentile-based binning is built on. Cross-dataset views expose how comparable two benchmarks really are. DRAC, for instance, behaves consistently everywhere. Between 60 and 80% of interactions sit at zero, with a decaying tail beyond.

Score analysis. On the top, score distributions across the supported aggregators on WOMD. On the bottom, the SafeShift score across WOMD, nuPlan and Argoverse2.

Score-level views separate the datasets more sharply. WOMD carries the densest vehicle traffic and the heaviest SafeShift tail, which extends past 10. Argoverse2 concentrates at the low end. nuPlan sits in between, with fewer vehicles but far more pedestrians.

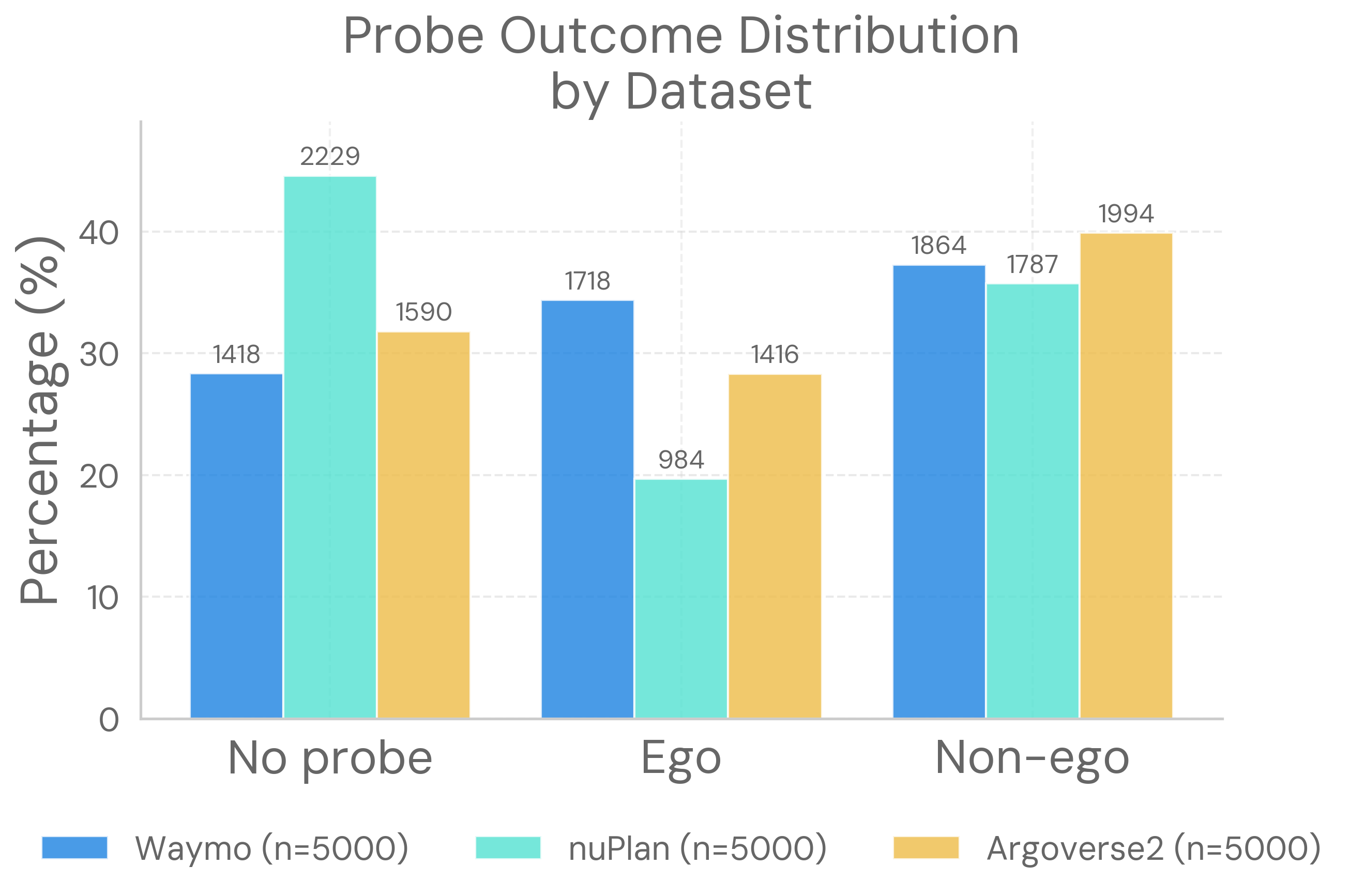

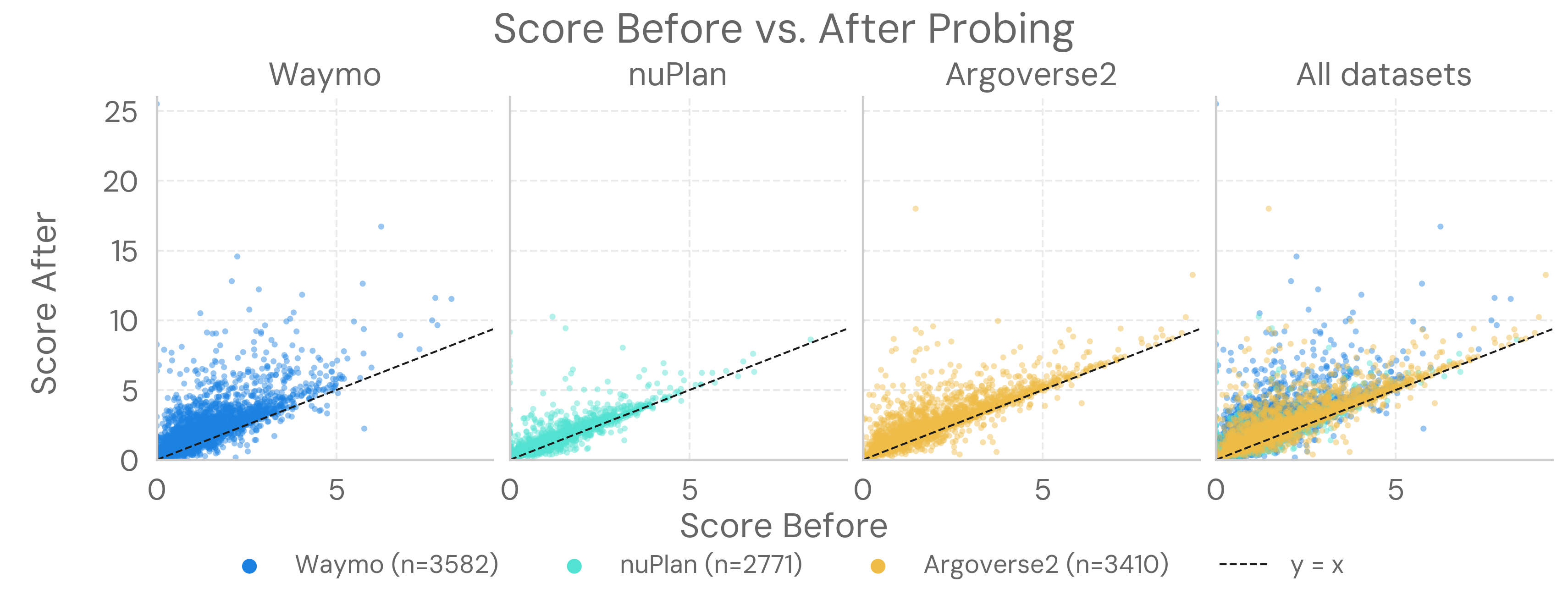

On the left, probe outcomes per dataset, either no critical probe or one perturbing the ego or a non-ego agent. On the right, the per-scenario interaction score before and after probing. Vertical displacement from the dashed identity line is the probe-induced delta.

Probing reshapes these distributions rather than shifting them uniformly. The share of scenarios yielding an ego-based critical probe varies substantially with dataset density. WOMD reaches 34.4% against 19.7% on nuPlan. That gap is a useful signal in itself when deciding which benchmark to mine.

Downstream Uses

Agent Criticality Categorization

Because feature and score distributions are available across the whole dataset, percentile-based binning partitions them into low-to-high criticality bands. The resulting categorical labels can serve as auxiliary supervision, drive curriculum learning or flag agent relevance. They also improve model interpretability.

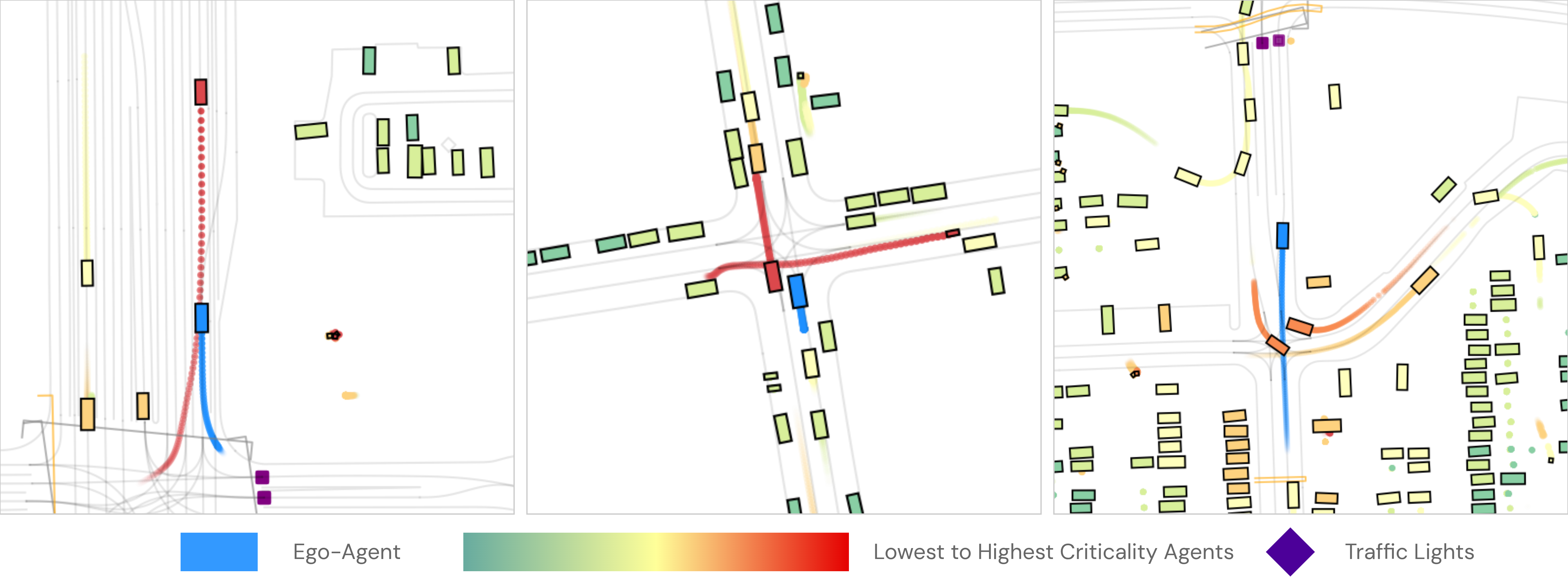

Agents colored from low (green) to high (red) criticality, with the ego-agent in blue.

Scenario Mining

The same distributions support mining at any point along the criticality spectrum. Mining the tail surfaces recorded scenarios worth stress-testing against. Mining by probe-induced delta surfaces scenarios that look benign as recorded but become critical under a plausible behavioral deviation.

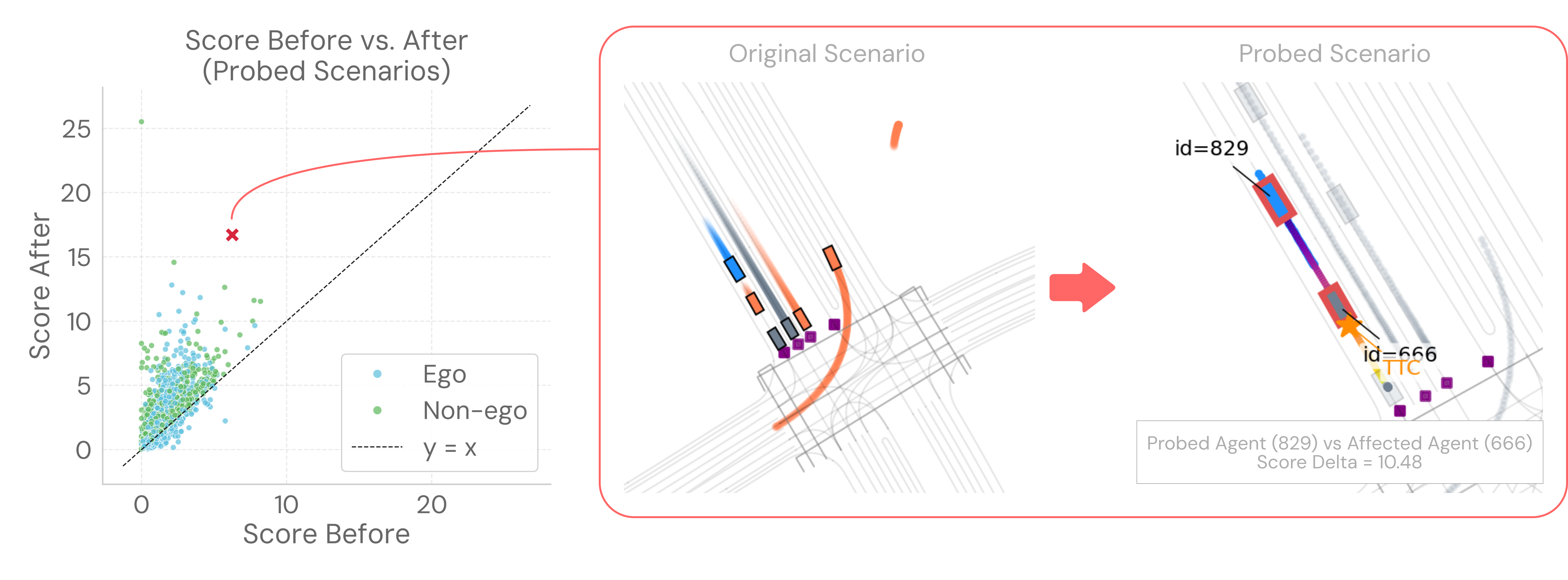

Mining by probe-induced criticality delta. On the left, scores before and after probing, color-coded by whether the probed agent is the ego. On the right, the interaction marked with a red ×, shown before and after probing. There the constant-velocity probe raises the pair score by 10.5.

Check out our paper and the library for more details!
